Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Name: Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced
Brand: Polywell
Price: 1 USD

Quality Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced wholesale

Brand Name : Polywell

Model Number : PA66GF25

Place of Origin : China

MOQ : 1 Ton

Price : USD 1,500-1,900/T

Payment Terms : T/T

Supply Ability : 20 Tons per Day

Delivery Time : 10-15 Working Days

Packaging Details : 25 kg per bag

Certification : SGS

Color : Black or Customized

Characteristics : High strengh and abrasion resistant

Application : Thermal Break Strips

Product Name : reinforced flame retardant PA plastic raw material

Port : Shanghai

Material : GFRP, Polyamide

Density : 1.25-1.35 g/cm3

Glass filled : 25%-30%

Filler : Glass Fiber Reinforced

Contact Now

Heat Insulation Raw Material Glass Fiber Reinforced Polyamide66 Nyon Granules

Product Description

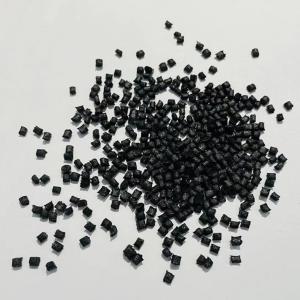

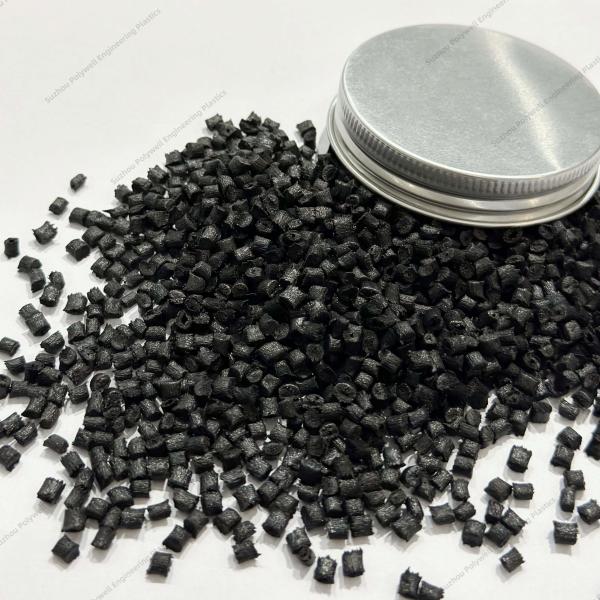

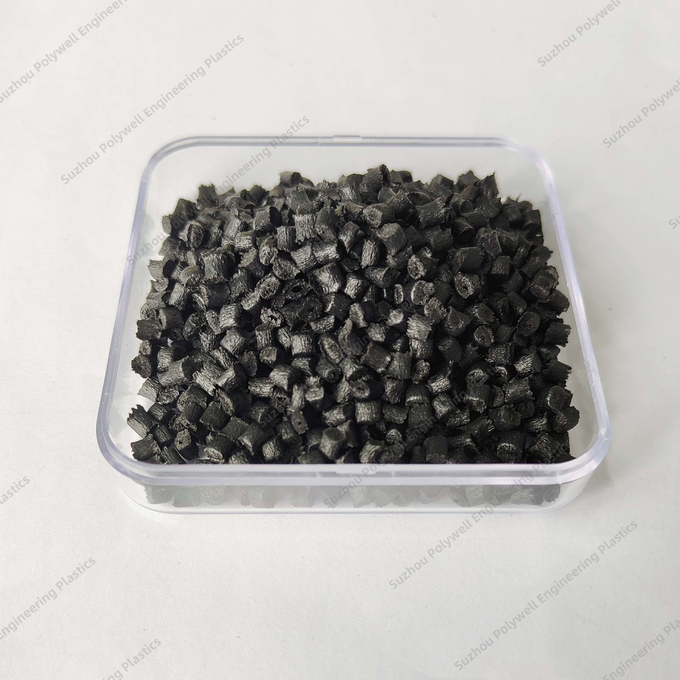

Glass fiber reinforced PA 6.6 granules with heat aging resistance extrusion moulding grade. It's good raw material for thermal break profiles of high stiffness and dimensional stability.

Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Application

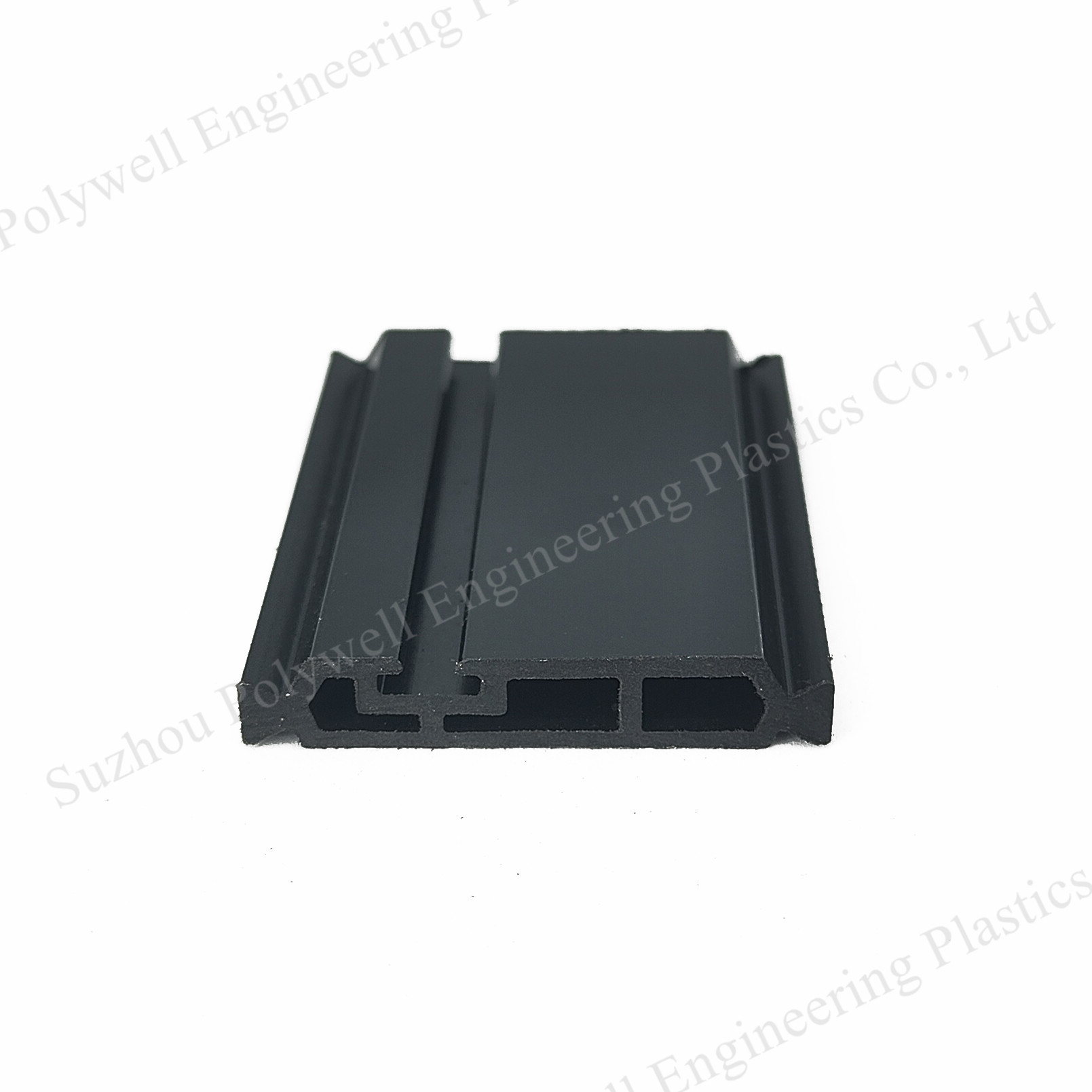

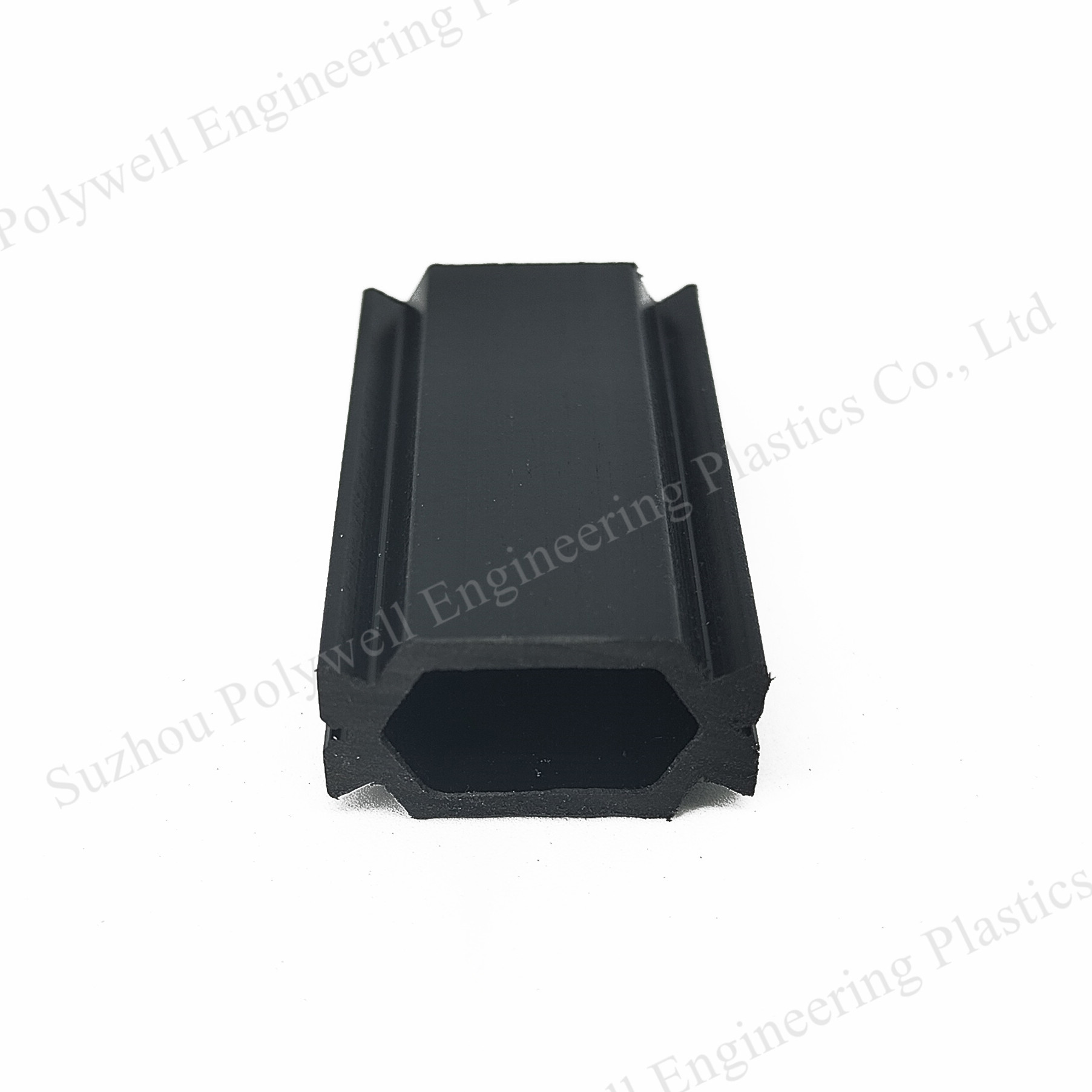

The PA66 granules with fiber glass are mainly used in thermal break strips, which are used in aluminum windows and doors. Our granules have good fluidity thus guaranteeing your smooth production. The good raw material can reduce the rate of rejects, and can produce high quality stips.

Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Detailed Infomation

Free sample support and short lead time

High mechanical strength

High toughness

High softening point

Good wear resistance

Self-lubrication

Long-term work at higher temperatures

High CTI value

Excellent electrical insulation

Low smoke and toxicity characteristics

Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Product Parameters

Item	Unit	GB/T 23615.1-2009	PW-Technical specification
Density	g/cm3	1.3±0.05	1.28-1.35
Linear expansion coefficient	K-1	(2.3-3.5)×10-5	(2.3-3.5)×10-5
Vicat softening temperature	ºC	≥230ºC	≥233ºC
Melting point	ºC	≥240	≥240
Testing for tensile cracks	-	No cracks	No cracks
Shore hardness	-	80±5	80-85
Impact strength(Unnotched)	KJ/m2	≥35	≥38
Tensile strength(longitudinal)	MPa	≥80a	≥82a
Elasticity modulus	MPa	≥4500	≥4550
Elongation at break	%	≥2.5	≥2.6
Tensile strength(transverse)	MPa	≥70a	≥70a
High temperature tensile strength(transverse)	MPa	≥45a	≥47a
Low temperature tensile strength(transverse)	MPa	≥80a	≥81a
Water resistance tensile strength(transverse)	MPa	≥35a	≥35a
Aging resistance tensile strength(transverse)	MPa	≥50a	≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
