Product Description:

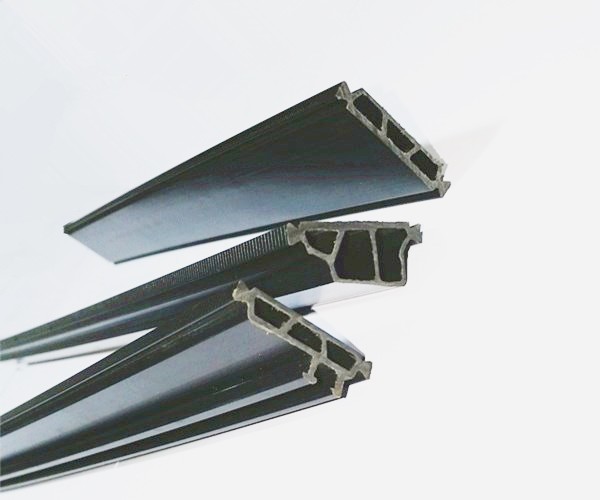

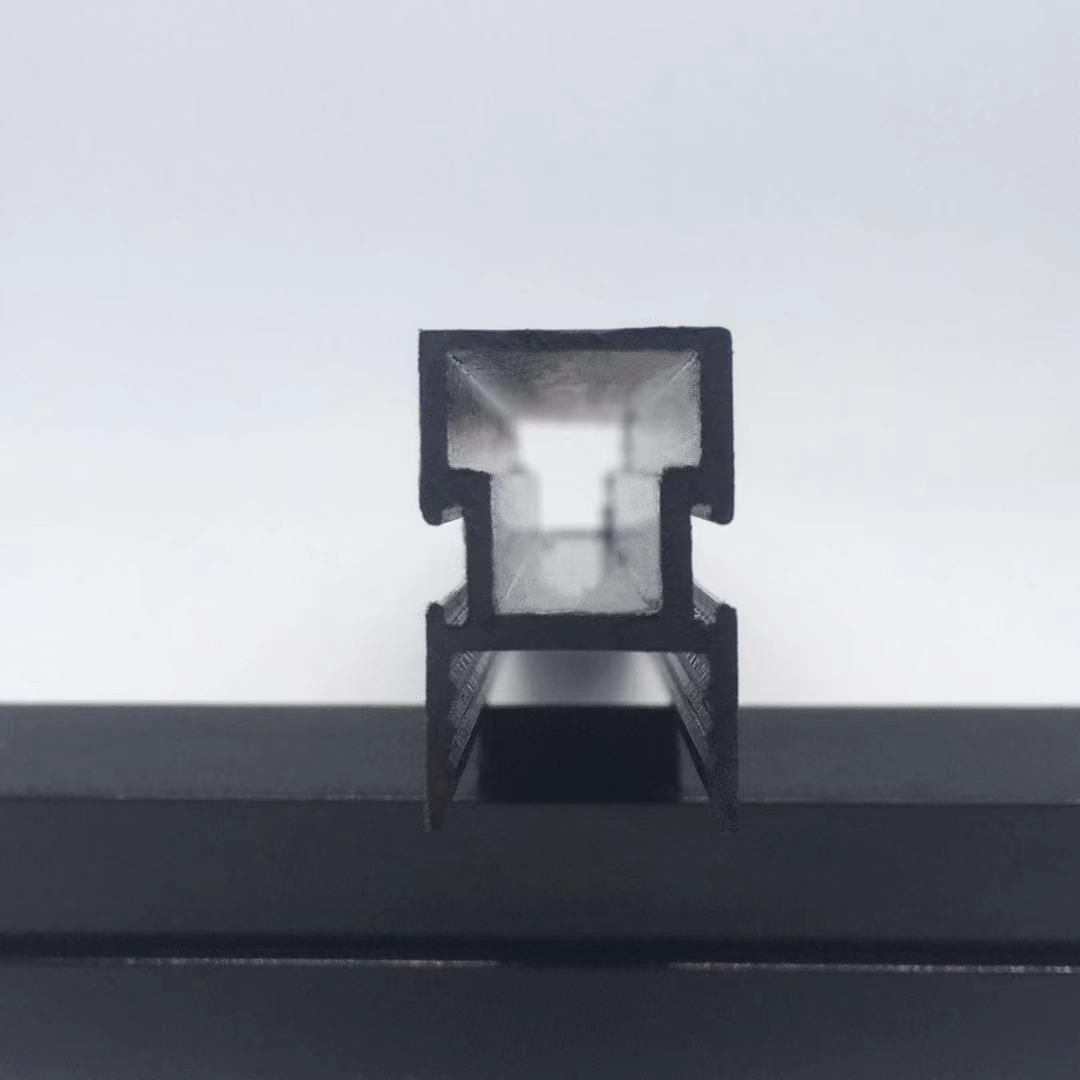

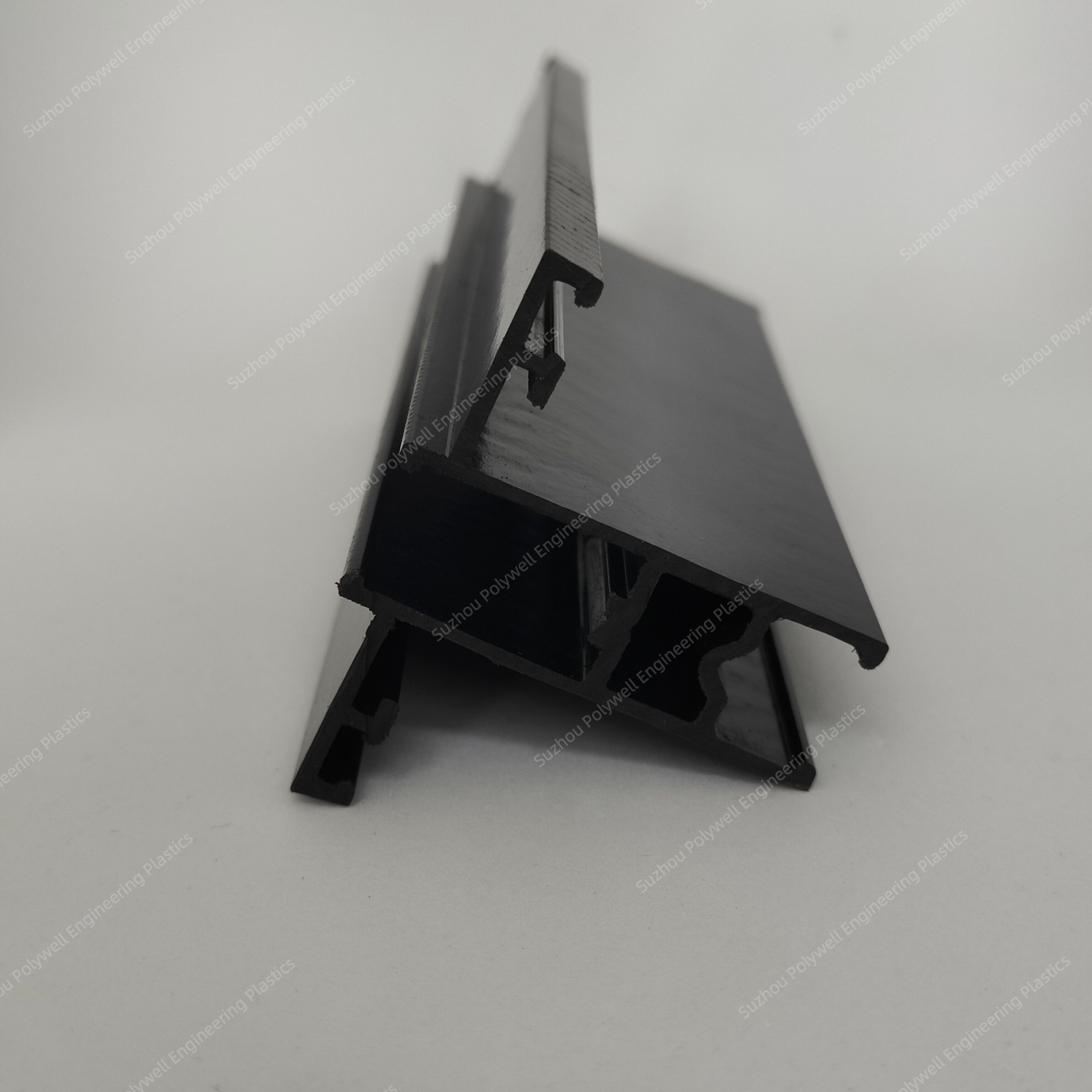

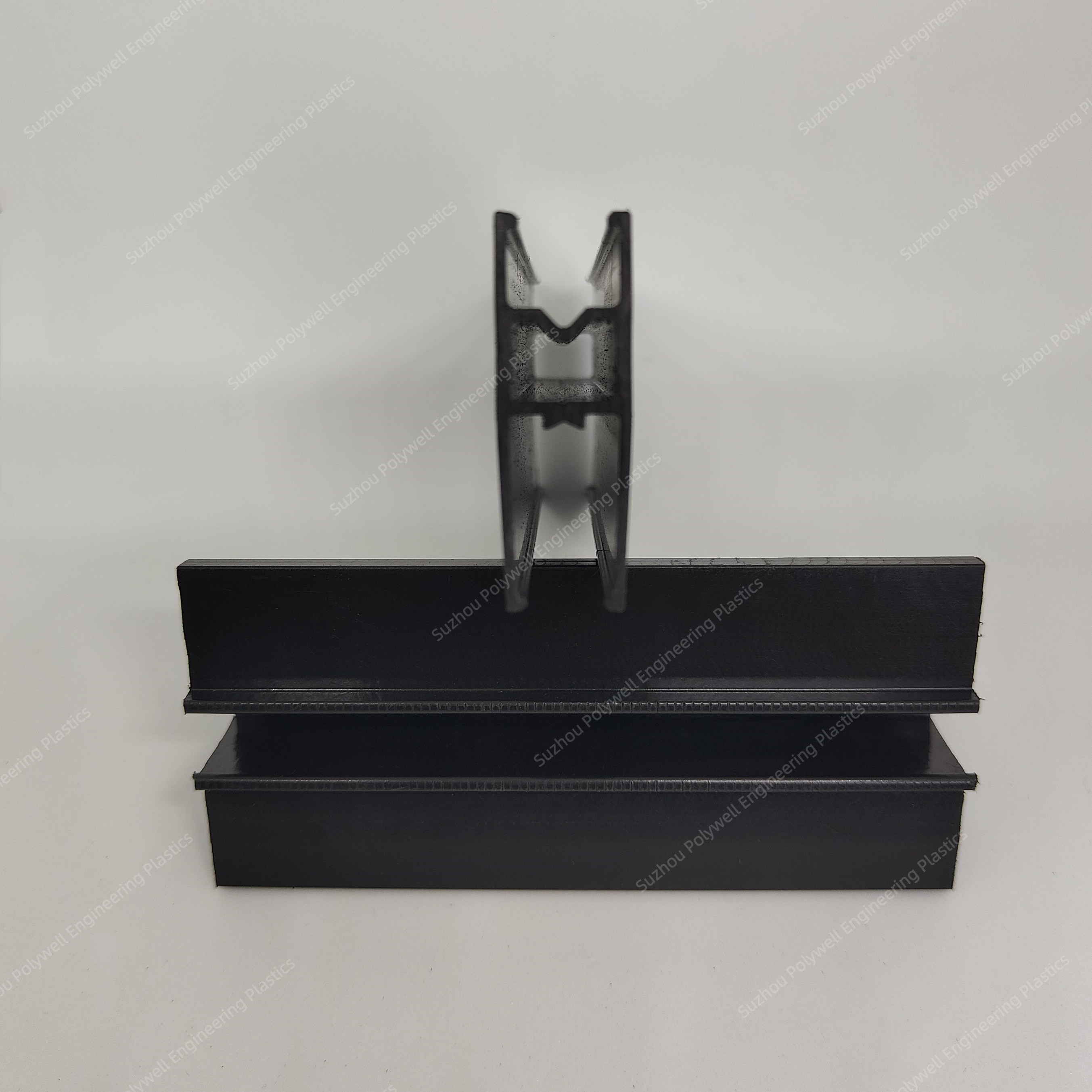

Thermal Break Strip is a kind of thermal insulation bar which can effectively reduce heat transmission. It is made of high quality PA66GF25 material, which has high strength, corrosion resistance, heat resistance and high temperature resistance. It is available in various shapes, like rectangle, square, oval and customized shapes. The width can also be customized. The color is black. It is a great choice of insulation for your projects.
Thermal Break Strip provides excellent thermal insulation performance and long-term stability. It is designed to be dimensionally stable with minimal thermal expansion and contraction. It can withstand extreme temperatures and resists corrosion, UV radiation and other environmental stresses. It is an ideal solution for thermal insulation and energy efficiency in various applications.
Thermal Break Strip is an effective insulation material for preventing heat transfer in buildings and other projects. It helps to maintain comfortable temperatures and conserve energy. It is an ideal choice for those seeking to reduce energy costs and improve the efficiency of their projects. Thermal Break Strip can be used in a variety of applications and is a great choice for those seeking a reliable thermal insulation solution.
Features:
- Product Name: Thermal Break Strip
- Color: Black
- Width: Customized
- Payment Term: T/T, Western Union
- Package: Customized
- Temperature Resistance: ≥240
- Keywords: thermal insulation bar, heat insulation strip, thermal broken strip
Technical Parameters:
| Item | Unit | GB/T 23615.1-2009 | PW-Technical specification |
| Density | g/cm3 | 1.3±0.05 | 1.28-1.35 |
| Linear expansion coefficient | K-1 | (2.3-3.5)×10-5 | (2.3-3.5)×10-5 |
| Vicat softening temperature | ºC | ≥230 | ≥233 |
| Melting point | ºC | ≥240 | ≥240 |
| Testing for tensile cracks | - | No cracks | No cracks |
| Shore hardness | - | 80±5 | 80-85 |
| Impact strength(Unnotched) | KJ/m2 | ≥35 | ≥38 |
| Tensile strength(longitudinal) | MPa | ≥80a | ≥82a |
| Elasticity modulus | MPa | ≥4500 | ≥4550 |
| Elongation at break | % | ≥2.5 | ≥2.6 |
| Tensile strength(transverse) | MPa | ≥70a | ≥70a |
| High temperature tensile strength(transverse) | MPa | ≥45a | ≥47a |
| Low temperature tensile strength(transverse) | MPa | ≥80a | ≥81a |
| Water resistance tensile strength(transverse) | MPa | ≥35a | ≥35a |
| Aging resistance tensile strength(transverse) | MPa | ≥50a | ≥50a |
1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
Applications:

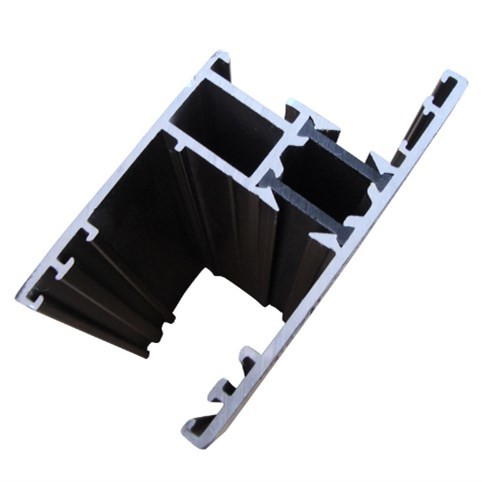

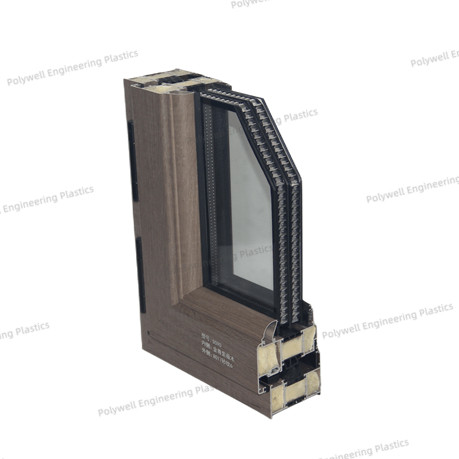

Polyamide strip is one of the most common materials used for years to create thermal breaks in curtain walls, commercial windows, doors, and more. It is installed between the interior and exterior profiles of the windows that forms an insulating barrier between the two.
Support and Services:
Thermal Break Strip product support and service consists of the following:
- Provide technical advice on product selection and usage.
- Support customers in troubleshooting and resolving any issues.
- Provide timely response to customer inquiries.
- Provide product installation and maintenance instructions.
- Provide warranty and replacement services.
- Provide regular product updates.
Storage:
First, Store profiles horizontally in order to prevent bending or twisting the material, otherwise long storage periods cause permanent sagging. Support long lengths.
Second, Maintain ambient temperature in the range from 15 to 20 °C.
Third, Protecting against moisture.
Packing and Shipping:

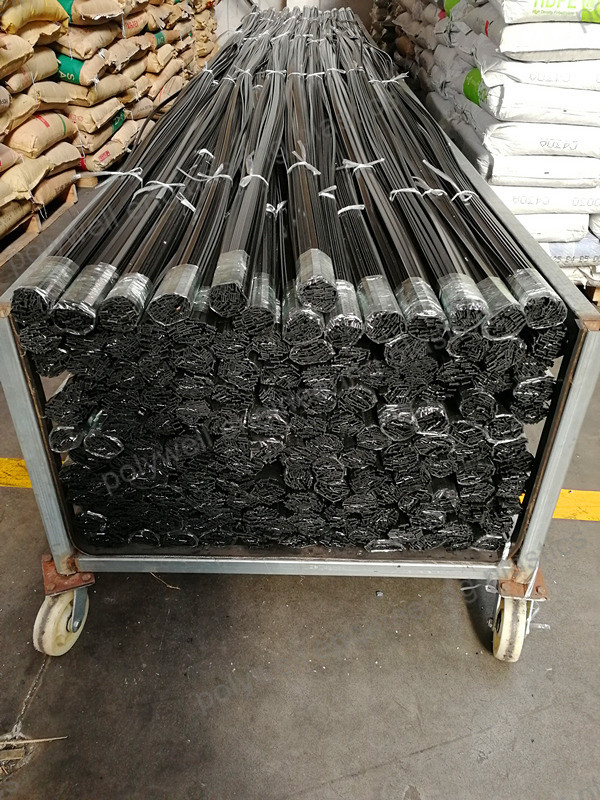

Packaging details:For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.

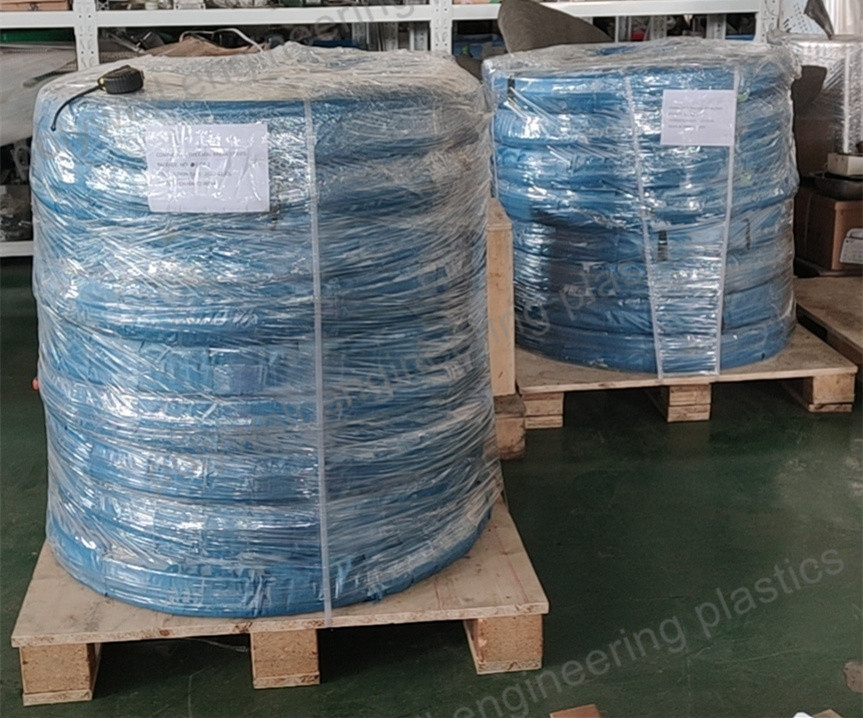

For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Delivery details: shipped in 15-20 working days after payment
